G2 Assembled Seats
G2 reel seats are now offered with 3K and matte 3K inserts pre-assembled and glued for your convenience.
- Ergonomic Spinning and Casting Designs
- 3K and Matte 3K pre-assembled insert options available
- Exclusive Uni-Hood and Uni-Lock Hood
- Cork and EVA fitted grips available
- Various accessory/trim options available
- Graphite and Compressed Carbon Technology (CCT) Seat Styles
- 16mm and 17mm size options
G2 Assembled Reel Seat Specs
Item # | Insert | I.D. | Rear O.D. | Length |
ARS-APEX-16-3K | Gloss 3K | .55" (14mm) | .71" (18mm) | 5.13" (130.3mm) |
ARS-APEX-16-M3K | Matte 3K | .55" (14mm) | .71" (18mm) | 5.13" (130.3mm) |
ARS-APEX-16-ULH-3K | Gloss 3K | .55" (14mm) | .71" (18mm) | 4.85" (123.2mm) |
ARS-APEX-16-ULH-M3K | Matte 3K | .55" (14mm) | .71" (18mm) | 4.85" (123.2mm) |
ARS-APEX-17-3K | Gloss 3K | .59" (15.15mm) | .79" (20mm) | 5.13" (130.3mm) |
ARS-APEX-17-M3K | Matte 3K | .59" (15.15mm) | .79" (20mm) | 5.13" (130.3mm) |
ARS-APEX-17-ULH-3K | Gloss 3K | .59" (15.15mm) | .79" (20mm) | 4.88" (124mm) |
ARS-APEX-17-ULH-M3K | Matte 3K | .59" (15.15mm) | .79" (20mm) | 4.88" (124mm) |
ARS-APEX-CCT-16-3K | Gloss 3K | .55" (14mm) | .71" (18mm) | 5.13" (130.3mm) |
ARS-APEX-CCT-16-M3K | Matte 3K | .55" (14mm) | .71" (18mm) | 5.13" (130.3mm) |
ARS-APEX-CCT-16-ULH-3K | Gloss 3K | .55" (14mm) | .71" (18mm) | 4.85" (123.2mm) |
ARS-APEX-CCT-16-ULH-M3K | Matte 3K | .55" (14mm) | .71" (18mm) | 4.85" (123.2mm) |
ARS-APEX-CCT-17-ULH-3K | Gloss 3K | .59" (15.15mm) | .79" (20mm) | 4.88" (124mm) |
ARS-APEX-CCT-17-ULH-M3K | Matte 3K | .59" (15.15mm) | .79" (20mm) | 4.88" (124mm) |
ARS-BLADE-CCT-16-ULH-3K | Gloss 3K | .53" (13.5mm) | 1.06" (27mm) | 4.47" (113.5mm) |
ARS-BLADE-CCT-16-ULH-M3K | Matte 3K | .53" (13.5mm) | 1.06" (27mm) | 4.47" (113.5mm) |

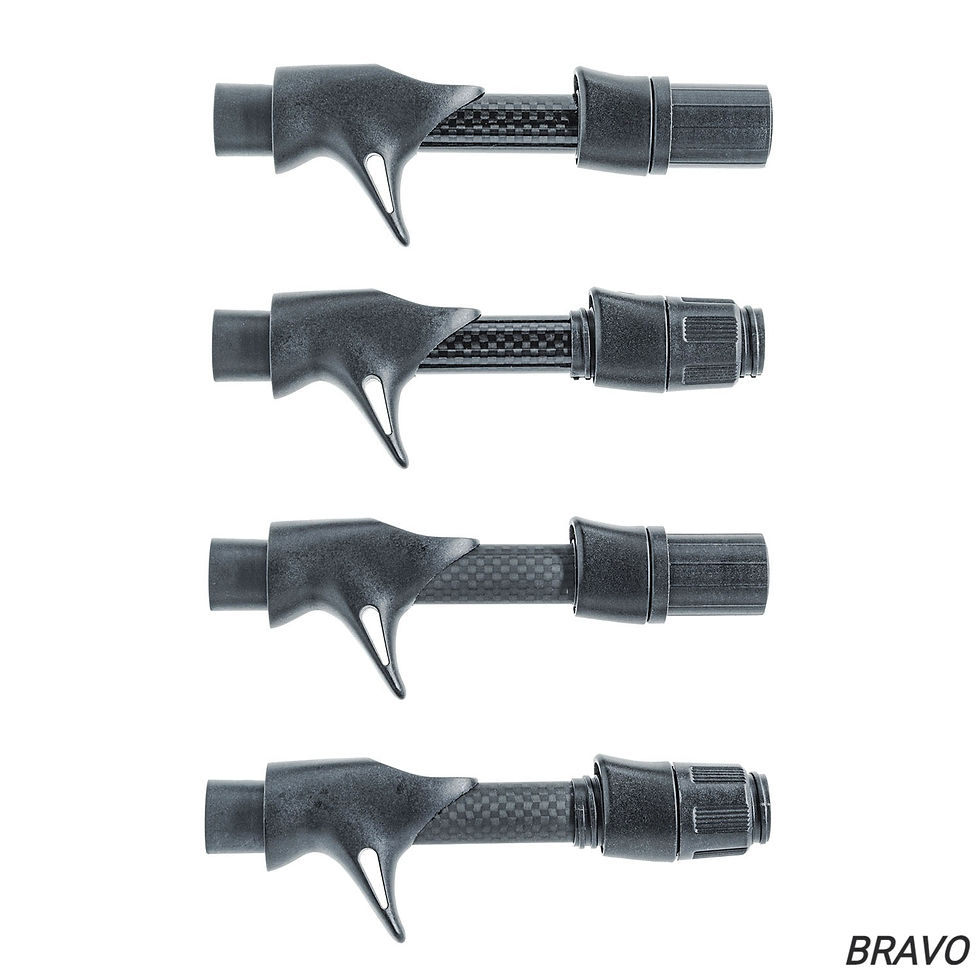

ARS-BRAVO2-16-3K | Gloss 3K | .55" (14mm) | 1.06" (27mm) | 5.47" (139mm) |
ARS-BRAVO2-16-M3K | Matte 3K | .55" (14mm) | 1.06" (27mm) | 5.47" (139mm) |
ARS-BRAVO2-16-ULH-3K | Gloss 3K | .55" (14mm) | 1.06" (27mm) | 5.47" (139mm) |
ARS-BRAVO2-16-ULH-M3K | Matte 3K | .55" (14mm) | 1.06" (27mm) | 5.47" (139mm) |
ARS-BRAVO2S-16-3K | Gloss 3K | .55" (14mm) | 1.06" (27mm) | 4.84" (123mm) |
ARS-BRAVO2S-16-M3K | Matte 3K | .55" (14mm) | 1.06" (27mm) | 4.84" (123mm) |
ARS-BRAVO2S-16-ULH-3K | Gloss 3K | .55" (14mm) | 1.06" (27mm) | 4.84" (123mm) |
ARS-BRAVO2S-16-ULH-M3K | Matte 3K | .55" (14mm) | 1.06" (27mm) | 4.84" (123mm) |
ARS-ESEAT-16-3K | Gloss 3K | .52" (13.4mm) | 1.06" (27mm) | 4.74" (120.4mm) |
ARS-ESEAT-16-M3K | Matte 3K | .52" (13.4mm) | 1.06" (27mm) | 4.74" (120.4mm) |
ARS-ESEAT-16-ULH-3K | Gloss 3K | .52" (13.4mm) | 1.06" (27mm) | 4.74" (120.4mm) |
ARS-ESEAT-16-ULH-M3K | Matte 3K | .52" (13.4mm) | 1.06" (27mm) | 4.74" (120.4mm) |
ARS-ESEAT-17-3K | Gloss 3K | .59" (15.15mm) | 1.06" (27mm) | 4.74" (120.4mm) |
ARS-ESEAT-17-M3K | Matte 3K | .59" (15.15mm) | 1.06" (27mm) | 4.74" (120.4mm) |
ARS-ESEAT-17-ULH-3K | Gloss 3K | .59" (15.15mm) | 1.06" (27mm) | 4.74" (120.4mm) |
ARS-ESEAT-17-ULH-M3K | Matte 3K | .59" (15.15mm) | 1.06" (27mm) | 4.74" (120.4mm) |
ARS-RAZOR-CCT-16-ULH-3K | Gloss 3K | .53" (13.5mm) | 1.06" (27mm) | 4.77" (121.1mm) |
ARS-RAZOR-CCT-16-ULH-M3K | Matte 3K | .53" (13.5mm) | 1.06" (27mm) | 4.77" (121.1mm) |
ARS-VIBE-16-3K | Gloss 3K | .55" (14mm) | 1.06" (27mm) | 4.31" (109.5mm) |
ARS-VIBE-16-M3K | Matte 3K | .55" (14mm) | 1.06" (27mm) | 4.31" (109.5mm) |
ARS-VIBE-16-ULH-3K | Gloss 3K | .55" (14mm) | 1.06" (27mm) | 4.31" (109.5mm) |
ARS-VIBE-16-ULH-M3K | Matte 3K | .55" (14mm) | 1.06" (27mm) | 4.31" (109.5mm) |
ARS-VIBE2-16-3K | Gloss 3K | .55" (14mm) | 1.06" (27mm) | 5.31" (135mm) |
ARS-VIBE2-16-M3K | Matte 3K | .55" (14mm) | 1.06" (27mm) | 5.31" (135mm) |
ARS-VIBE2-16-ULH-3K | Gloss 3K | .55" (14mm) | 1.06" (27mm) | 5.31" (135mm) |
ARS-VIBE2-16-ULH-M3K | Matte 3K | .55" (14mm) | 1.06" (27mm) | 5.31" (135mm) |
ARS-VIBE2S-16-3K | Gloss 3K | .55" (14mm) | 1.06" (27mm) | 5.34" (135.8mm) |
ARS-VIBE2S-16-M3K | Matte 3K | .55" (14mm) | 1.06" (27mm) | 5.34" (135.8mm) |
ARS-VIBE2S-16-ULH-3K | Gloss 3K | .55" (14mm) | 1.06" (27mm) | 5.34" (135.8mm) |
ARS-VIBE2S-16-ULH-M3K | Matte 3K | .55" (14mm) | 1.06" (27mm) | 5.34" (135.8mm) |

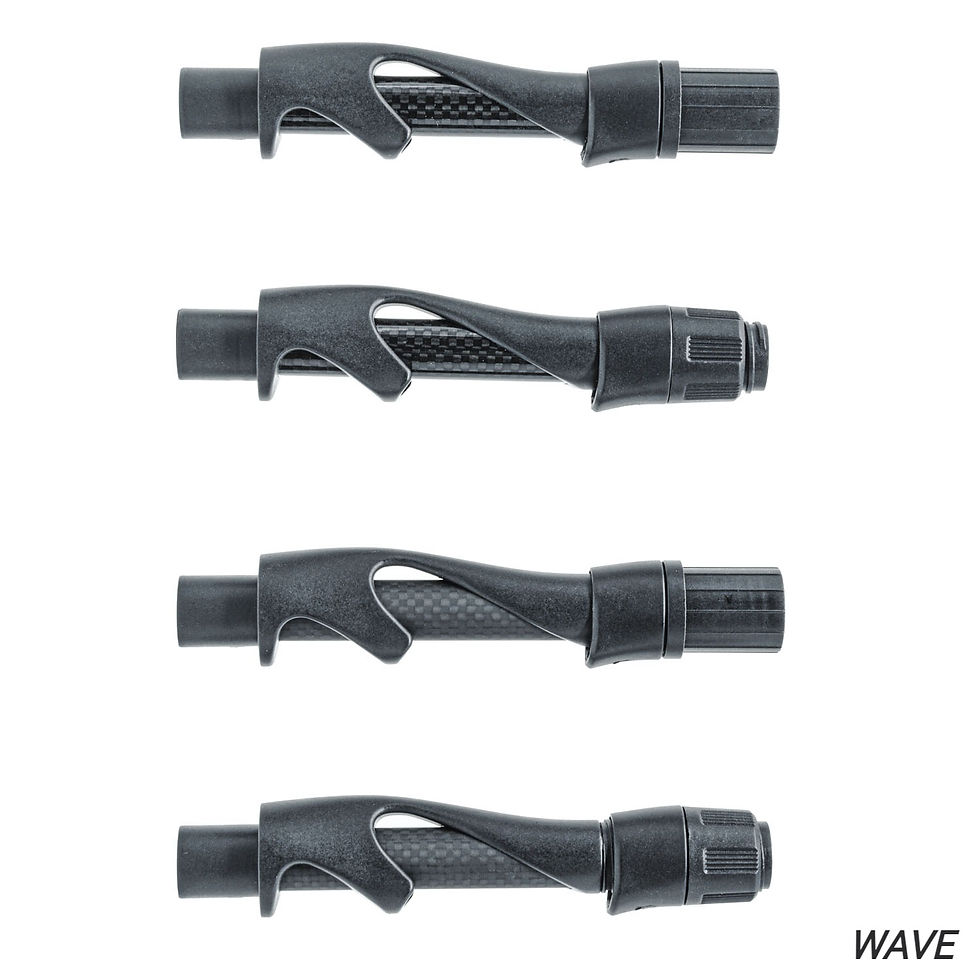

ARS-WAVE-16-3K | Gloss 3K | .55" (14mm) | 1.10" (28mm) | 5.73" (145.5mm) |
ARS-WAVE-16-M3K | Matte 3K | .55" (14mm) | 1.10" (28mm) | 5.73" (145.5mm) |
ARS-WAVE-16-ULH-3K | Gloss 3K | .55" (14mm) | 1.10" (28mm) | 5.73" (145.5mm) |
ARS-WAVE-16-ULH-M3K | Matte 3K | .55" (14mm) | 1.10" (28mm) | 5.73" (145.5mm) |
